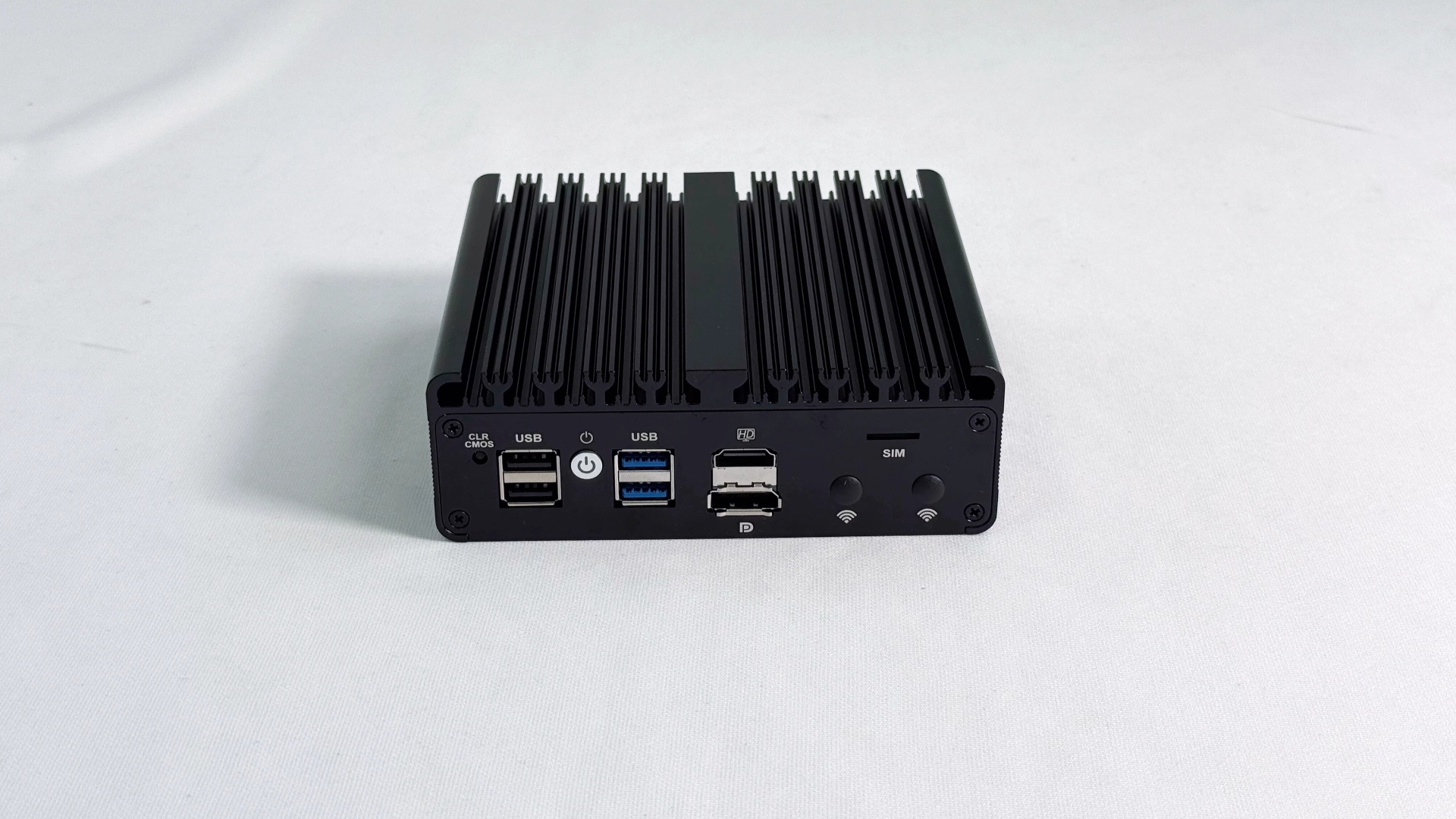

Model Box E-30
Processor Intel N150
Network Port 4*RJ45
Network Controller Intel I226V 2.5GbE
Memory Slot 1*DDR5 SO-DIMM 4800MT/s
Storage Slot 1*M.2 Key-M 2280/1*SATA 6Gb/s
Expandable Port 1*mPCIe/1*M.2 Key-E 2230 (CNVi)
Video Output 1*DP/1*HD
Power Type DC 12V-4A
Cooling Method Fanless (Passive)
Device Dimensions 138*126*48 mm
Industrial IoT Gateway: Connects to PLC/Sensor networks, and achieves real-time data collection and edge preprocessing of production line equipment through 4×2.5GbE ports.
Lightweight network security device: As an enterprise branch firewall, VPN gateway or SD-WAN edge node, it divides security domains using multiple network ports.
Smart retail terminal hub: drives digital signage and self-service checkout machines, and connects to the passenger flow analysis system through M.2 Key-E Wi-Fi expansion.
Distributed edge storage node: Equipped with SATA+NVMe dual storage, it builds a cost-effective micro NAS or video surveillance storage server.
Mobile vehicle computing platform: Fanless and anti-vibration design is suitable for special vehicles, processing vehicle camera data and connecting to cellular network backhaul.
