Rack E-30

Rack E-30 perfectly balances network performance, expansion flexibility and energy efficiency in a compact 1U rack space, equipped with Intel low-power processors and flexible and expandable interfaces. Whether building a micro data center for a branch office or deploying edge AI inference nodes for smart manufacturing production lines, modular architecture can provide future evolution possibilities.

SKU: BWRE-30 Category: Tags: , , , ,
Guaranteed Safe Checkout

Model Rack-E-30
Processor Intel N100/N150/Core i3-N305

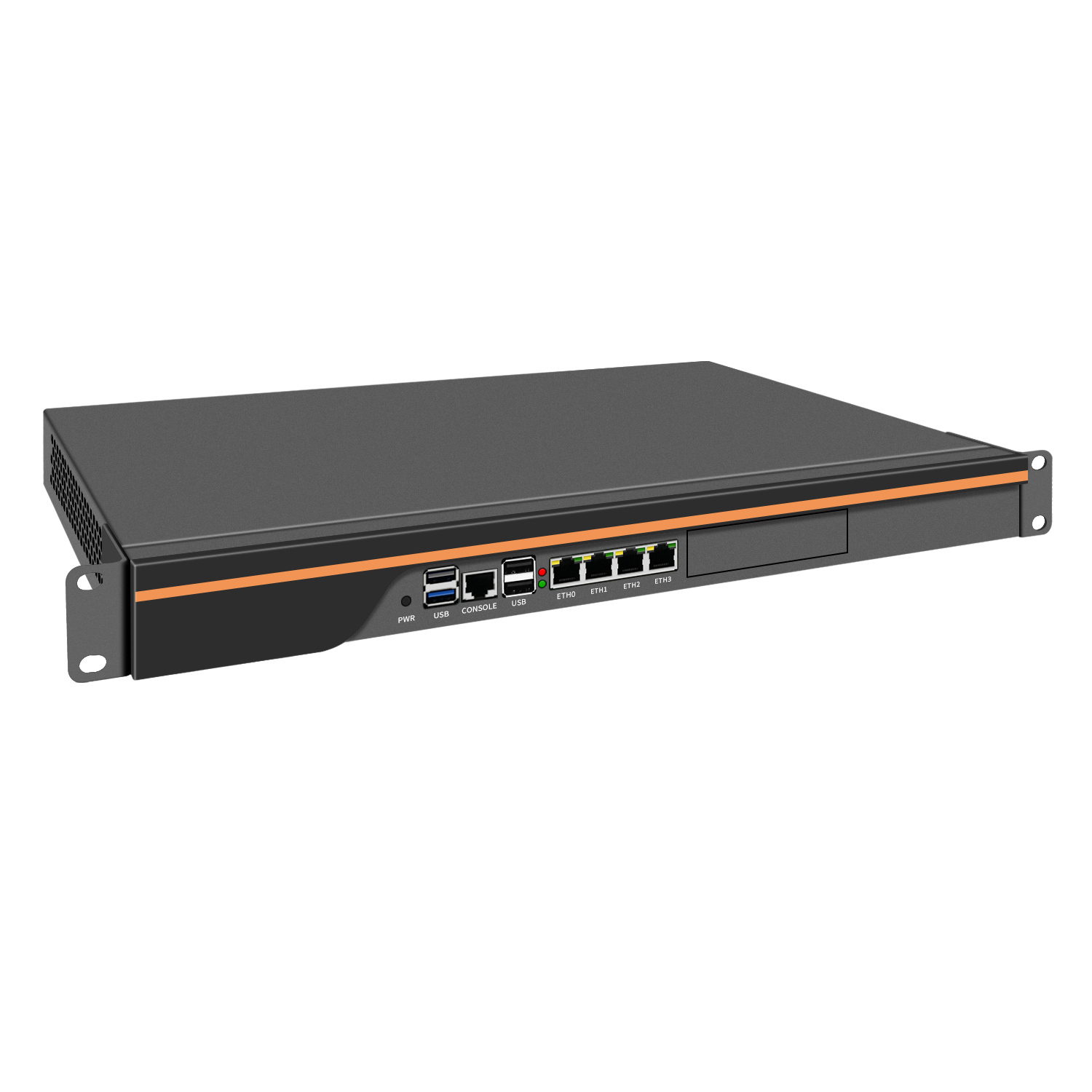

Network Port 4*RJ45
Network Controller Intel i226V
Memory Slot 1*DDR5 SO-DIMM 4800MT/s
Storage Slot 1*M.2 Key-M 2280/1*SATA 6Gb/s
Expandable Slot 1*PCIe x8 (x4 Rate); 1*mPCIe (USB2.0 Channel)
Video Output 1*VGA/1*HD (Optional)
Power Type 85V~264V AC
Cooling Method 1*Processor fan + 2*Chassis fan
Device Dimensions 485*285*45 mm (1U Cases)

  • Enterprise network gateway: Soft router (OpenWRT/iKuai), VPN server, Network monitoring (pfSense/Zeek).
  • Lightweight virtualization: Docker container hosting, Edge computing node (Home Assistant/Node-RED), File sharing server (Samba/NFS).
  • Multimedia office terminal: Video conferencing system, Educational electronic whiteboard control center.
  • Industrial edge equipment: Data acquisition gateway, Small SCADA system, IoT protocol conversion node.
Data Sheet
Product Manual
Firmware
Reserved Marketing information 1
Something good is coming.
Click Here
Reserved Marketing information 2
Something good is coming.
Click Here
Reserved Marketing information 3
Something good is coming.
Click Here
Weight 6 kg
Dimensions 55 × 35 × 15 cm
Processor

Intel N150, Core i3-N305
Bundles

8GB RAM 128GB SSD, 8GB RAM 256GB SSD, 8GB RAM 512GB SSD, 16GB RAM 256GB SSD, 16GB RAM 512GB SSD, 16GB RAM 1TB SSD
Expansion Port

NO, Dual-port 10G SFP+, Quad-port 10G SFP+
