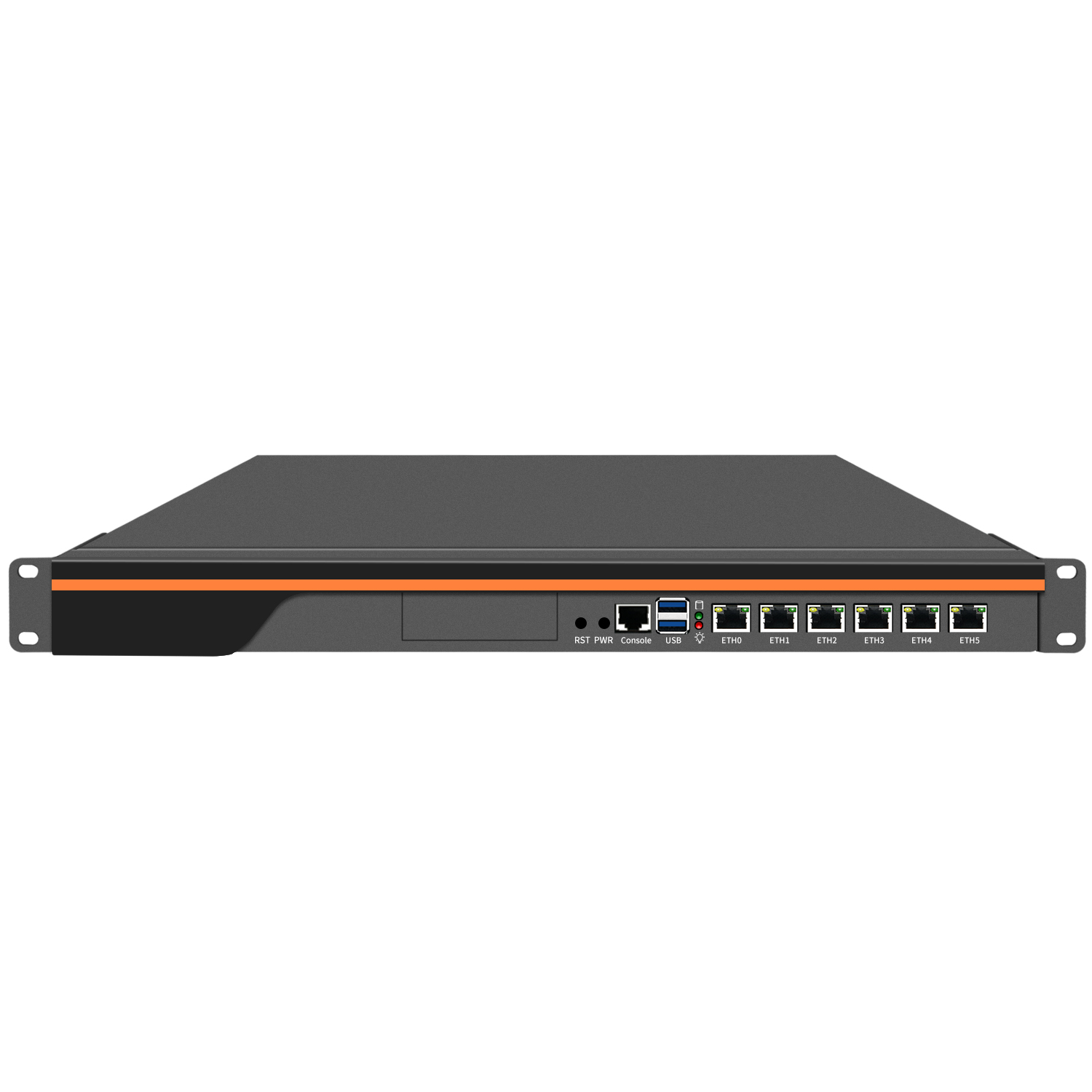

Model Rack H-S60
Processor Intel Core i5-12450H/Core i7-13620H
Network Port 6*RJ45
Network Controller Intel i226V
Memory Slot 2*DDR5 SO-DIMM, Up to 96GB 5200MT/s
Storage Slot 2*M.2 Key-M 2280/1*SATA 6Gb/s
Expandable Slot 1*PCIe x8/1*M.2 Key-E 2230/1*M.2 Key-B 3052
Video Output 1*VGA/1*HD (Optional)
Power Type 80V~264V AC
Cooling Method 1*Processor fan + 2*Chassis fan
Device Dimensions 485*285*45 mm (1U Cases)
- Edge computing center: deploy Kubernetes clusters in factories/warehouses, and accelerate machine vision quality inspection through PCIe GPU.
- Enterprise-level network security fortress: run PfSense/OPNsense to build a 6-port firewall, and expand the PCIe slot to expand the TLS encryption and decryption card.
- Lightweight virtualization platform: based on Proxmox/ESXi virtualization platform, hosting multiple business systems (Docker/Windows IoT).
- Intelligent video analysis gateway: 6-way 2.5GbE access to IP cameras, and realize real-time behavior recognition through M.2 expansion AI module.
- Distributed storage node: dual NVMe as cache + SATA HDD as storage, build Ceph/TrueNAS core node.
